1. Lay 4x P22 pieces on top of some scrap/spare 1/4" thick steel (these are used as guides). Tack them onto the tubes.
    • Lay 4x P22 pieces on top of some scrap/spare 1/4" thick steel (these are used as guides).

    • Tack them onto the tubes.

    • Finish the welds and fill the spaces.

  2. Put the 3" pipe section in a vice, clamping along the length of the tube.  Twist each plate about 35 degrees with a large monkey wrench, alternating the direction for each one
    • Put the 3" pipe section in a vice, clamping along the length of the tube. Twist each plate about 35 degrees with a large monkey wrench, alternating the direction for each one

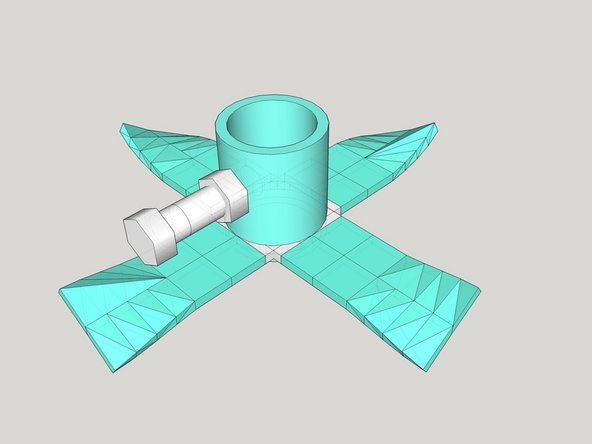

  3. Note here there are two variations in the  tine modules.  Cut the hole in the side of the pipe for the bolt to pass through with an oxy acetylene torch, ensuring that at least 9 of the 18 tine modules will have a hole offset by 45 degrees to the other 9 modules. Weld a nut for the 3/4" bolts here.
    • Note here there are two variations in the tine modules. Cut the hole in the side of the pipe for the bolt to pass through with an oxy acetylene torch, ensuring that at least 9 of the 18 tine modules will have a hole offset by 45 degrees to the other 9 modules.

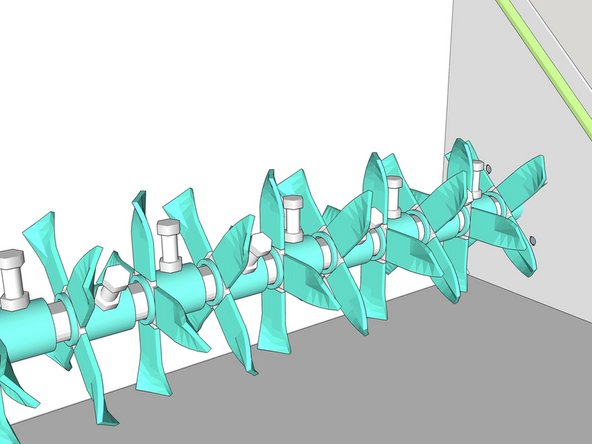

    • Weld a nut for the 3/4" bolts here.

    • Thread the bolt through. This completes the build one tine module. After creating one or 2 many can be made at once.
