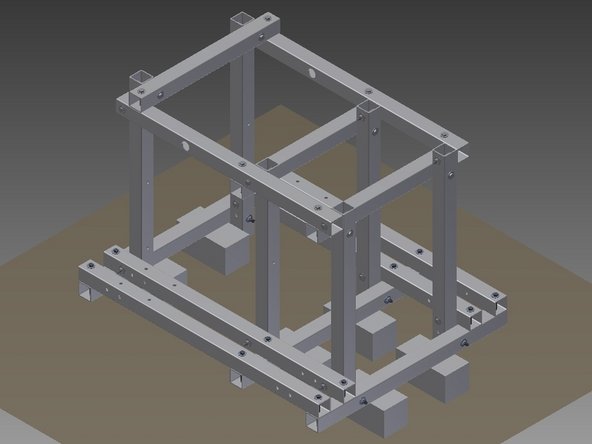

LifeTrac: Assemble Frame

Written By: Dozuki System (and one other contributor)
  • Comments: 0
  • Favorites: 0

Difficulty

Moderate

Steps

10

Time Required

Suggest a time??

Sections

1

Flags

1

User-Contributed Guide

User-Contributed Guide

This guide is not managed by the site's staff.

Introduction

For more information go here.

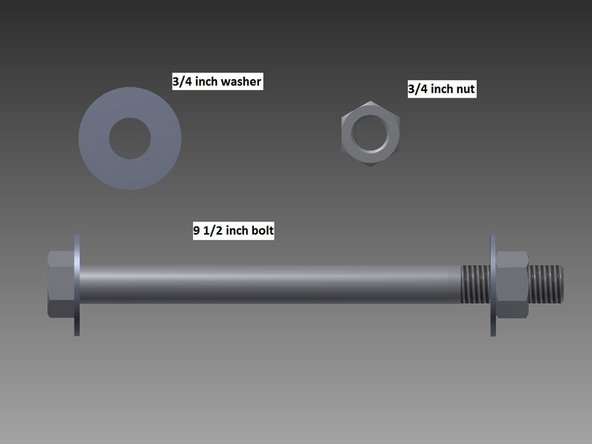

  1. Allocate bolts. Lay out bolts on assembly table.

    • Allocate bolts.

    • Lay out bolts on assembly table.

    • On each bolt:

    • Attach 2 washers.

    • Loosely attach nuts.

    Edit

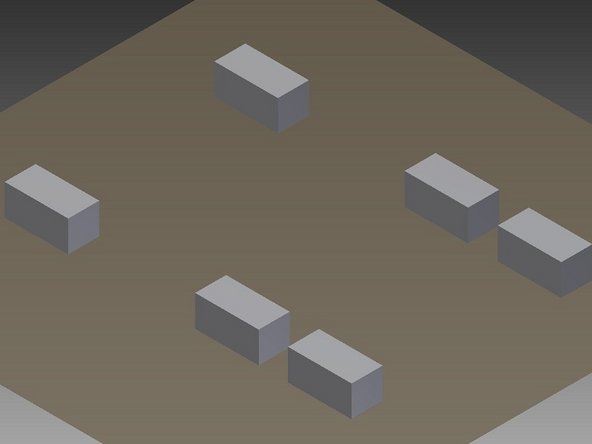

  2. Lower Frame Assembly

    • Lower Frame Assembly

    • Place blocks on ground in assembly area.

    Edit

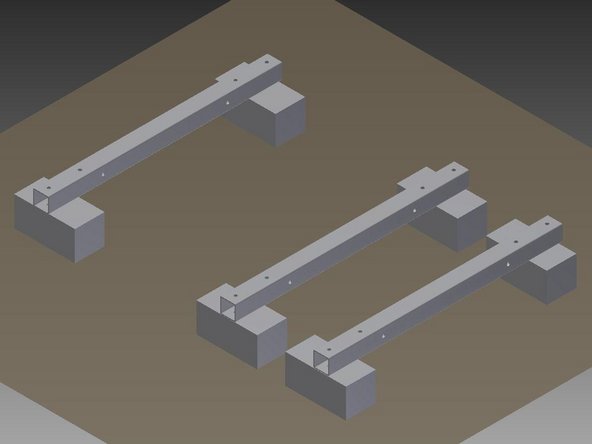

  3. Place Lower Frame pieces (front-to-back) on blocks.

    • Place Lower Frame pieces (front-to-back) on blocks.

    Edit

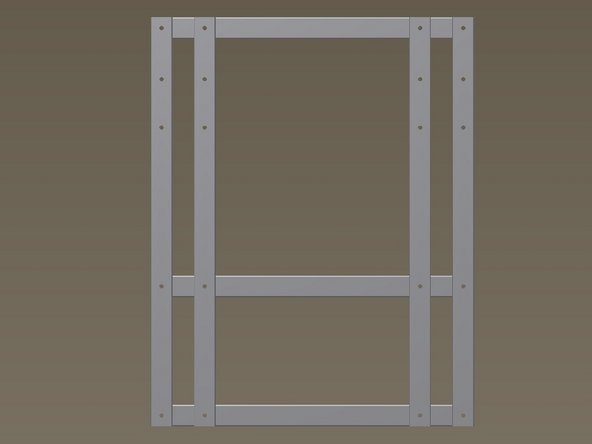

  4. Align holes.

    • Align holes.

    Edit

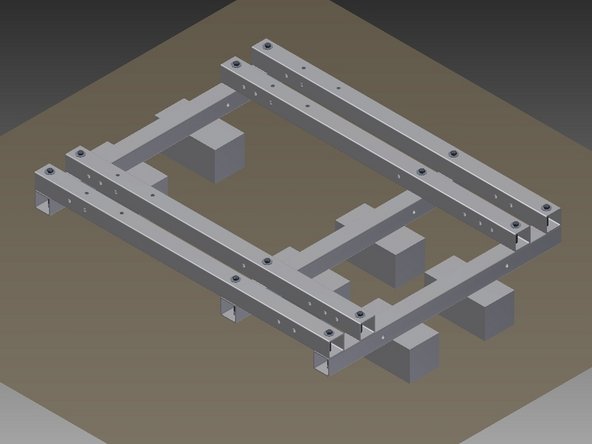

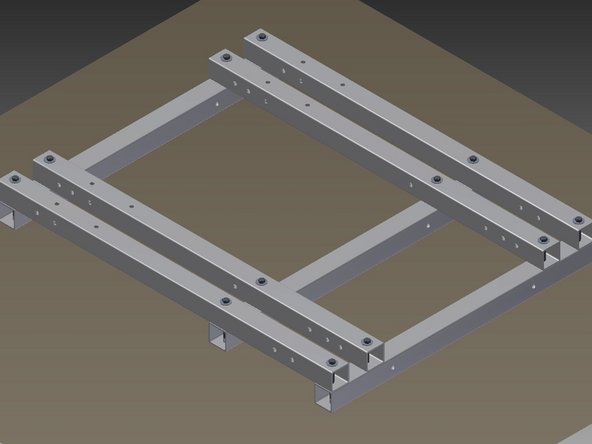

  5. Bolt Lower Frame together. Level the Lower Frame with level.

    • Bolt Lower Frame together.

    • Level the Lower Frame with level.

    • Adjust blocks.

    Edit

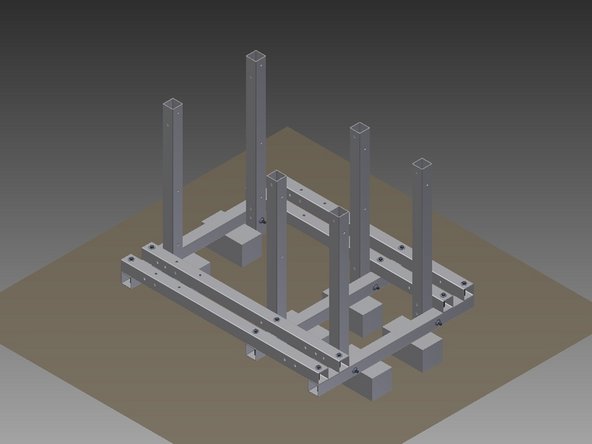

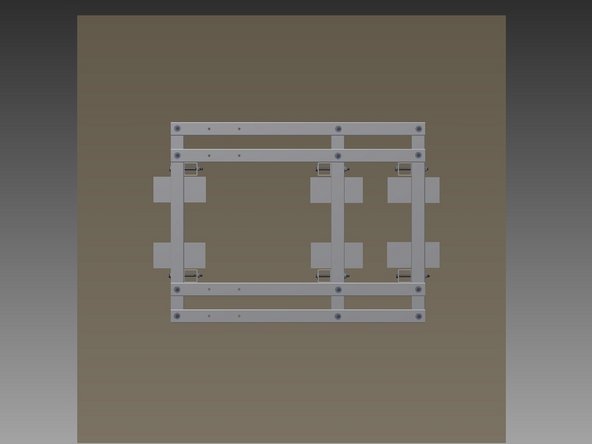

  6. Mount Vertical Frame pieces to Lower Frame inner corners. Tighten loosely. Leave room for play.

    • Mount Vertical Frame pieces to Lower Frame inner corners.

    • Tighten loosely. Leave room for play.

    Edit

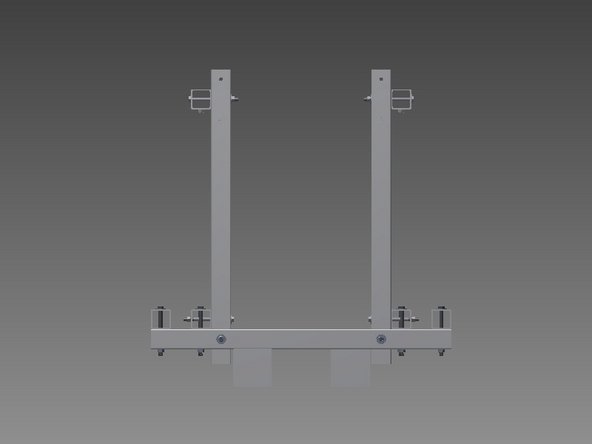

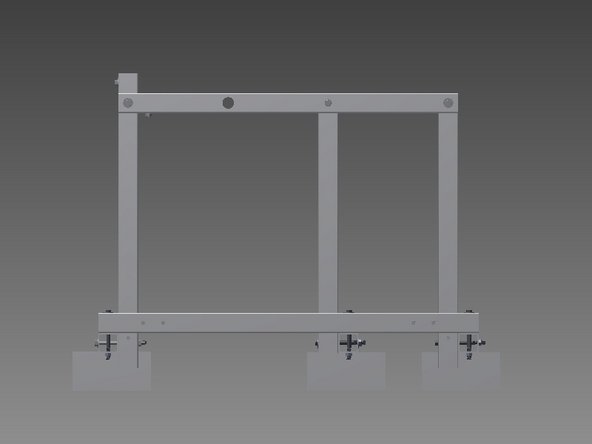

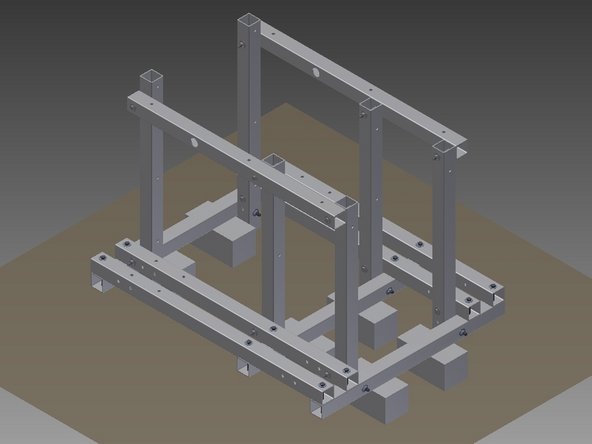

  7. Mount Upper Crossbrace Frame pieces. Mount Upper Crossbrace Frame pieces. Mount Upper Crossbrace Frame pieces.

    • Mount Upper Crossbrace Frame pieces.

    Edit

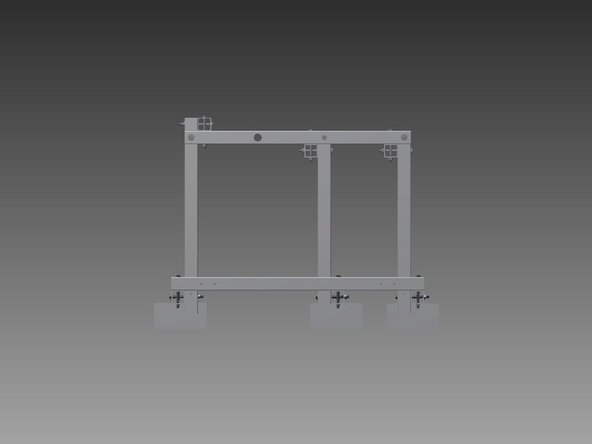

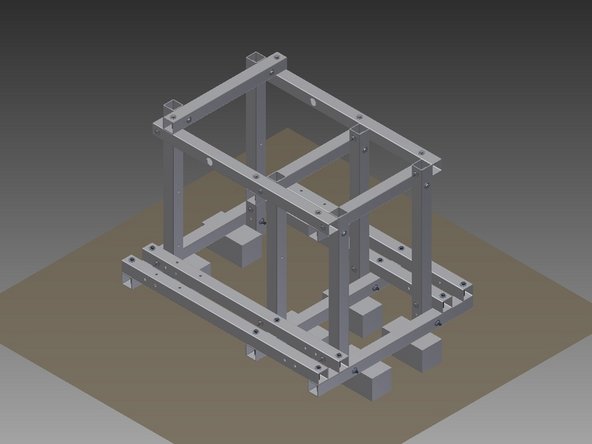

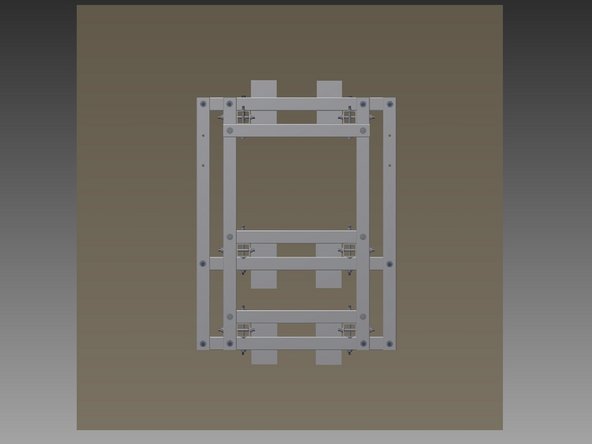

  8. Mount Upper Front-Back Frame pieces. Mount Upper Front-Back Frame pieces. Mount Upper Front-Back Frame pieces.

    • Mount Upper Front-Back Frame pieces.

    Edit

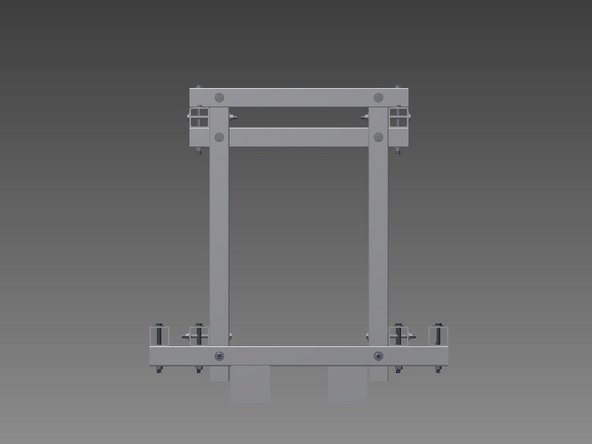

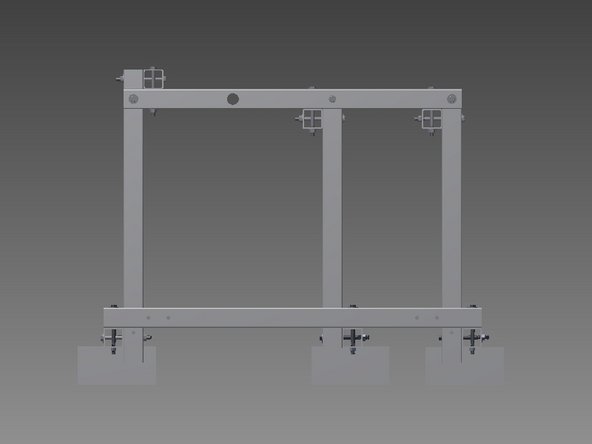

  9. Tighten all frame bolts extra-tight. Tighten all frame bolts extra-tight. Tighten all frame bolts extra-tight.

    • Tighten all frame bolts extra-tight.

    Edit

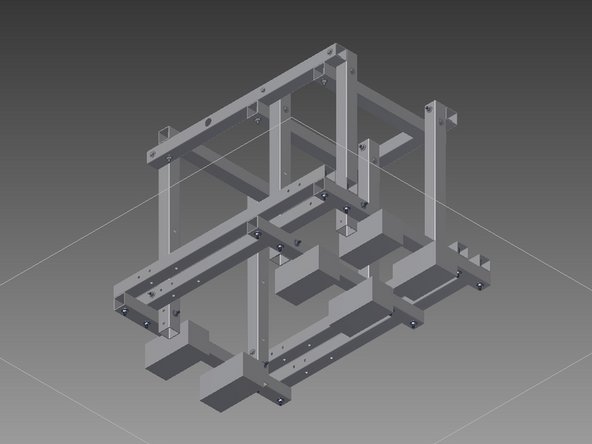

  10. Finished!

    • Finished!
