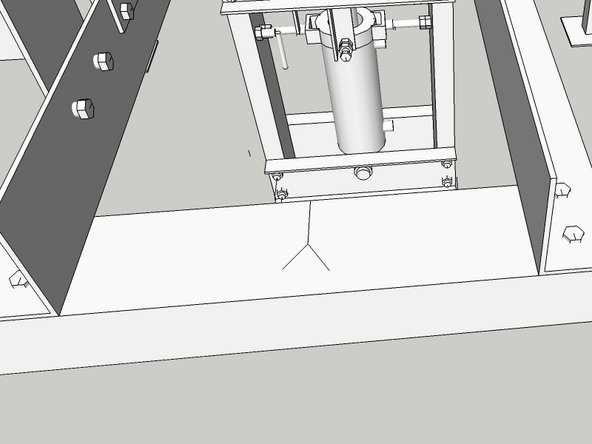

  1. This is on the opposite side of the CEB of the brickholder plate.
    • This is on the opposite side of the CEB of the brickholder plate.

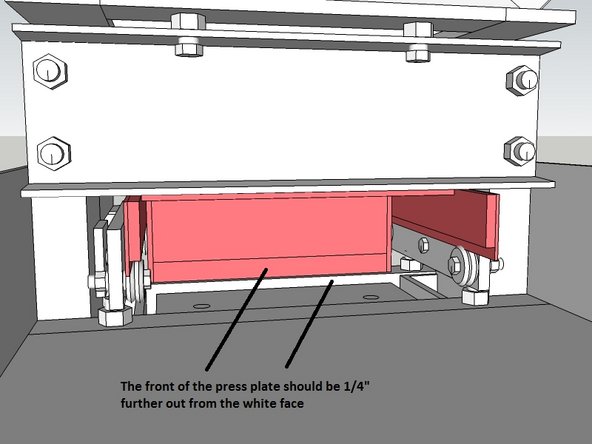

  2. The drawer needs to be in the fully retracted position.
    • The drawer needs to be in the fully retracted position.

    • This is when the drawer is about to eject the brick, the press plate will be back 1/4" from the inside of the compression chamber.

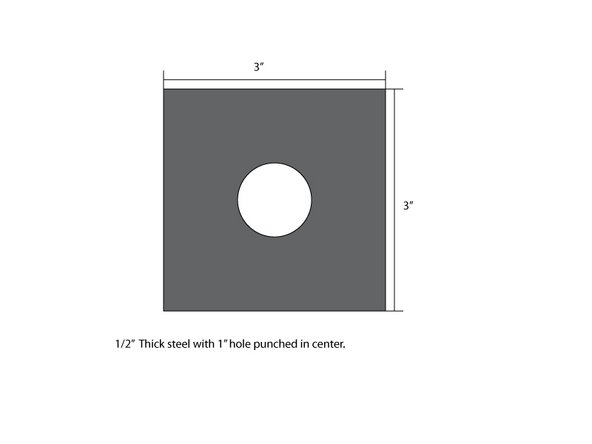

  3. Punch a 1" hole in the center of a 3"x3" piece of 1/2" thick steel.
    • Punch a 1" hole in the center of a 3"x3" piece of 1/2" thick steel.

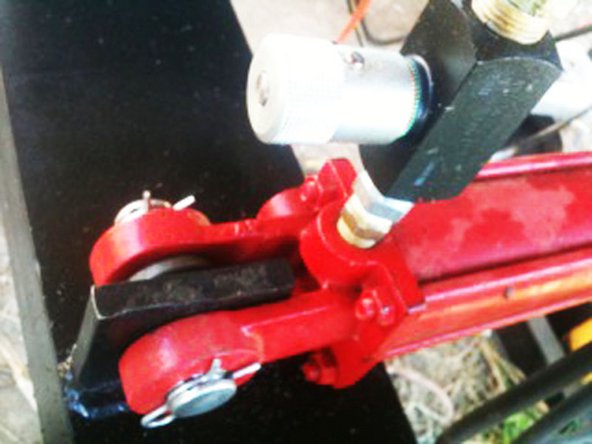

  4. On the side which attaches to the secondary arm, put the pin through the mount, a 1" washer, and the cylinder.
    • On the side which attaches to the secondary arm, put the pin through the mount, a 1" washer, and the cylinder.

    • The side of the cylinder with the rod attaches to the drawer.

    • Both sides will need a 1" washer to act as a spacer so the cylinder can't slide back and forth.

    • When the cylinder is attached to the drawer, place the mount on your center mark.

    • Square the mount in all directions.

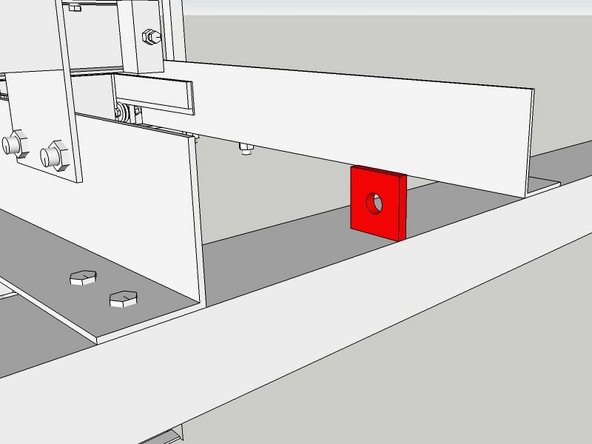

  5. Tack the mount in a few places.
    • Tack the mount in a few places.

    • Remove the pin and move the cylinder out of the way of the mount.

    • You can slide the drawer away so you don't need to remove that side.

    • Weld the mount solid, all the way around. Make sure it stays square.

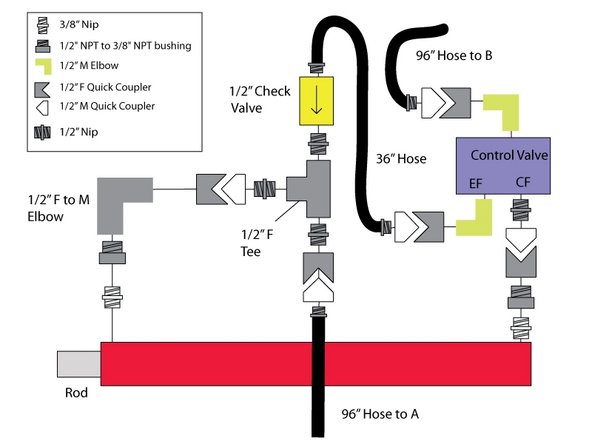

  6. Return the secondary cylinder and re-mount it. Don't forget the washer. Remove the plug from the port on top of the cylinder.
    • Return the secondary cylinder and re-mount it. Don't forget the washer.

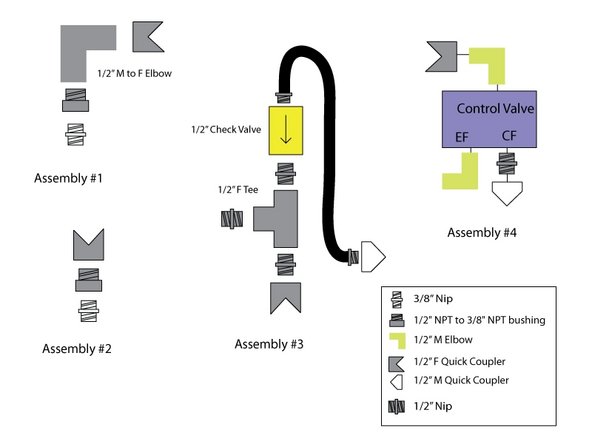

    • Remove the plug from the port on top of the cylinder.

    • The cylinder may have fluid in it, so keep a jar handy to catch any that spills.

    • Install Assembly #2 into this port.

    • Couple the remaining assemblies and hoses in place.
