Introduction

Sketchup ModelAdditional Materials Required:* Thin Cylinder Supports* Magnet Holder* Sensor Holder* Leg Holders (2)* 3/4" Galvanized Nuts (3)

Tools

Parts

No parts specified.

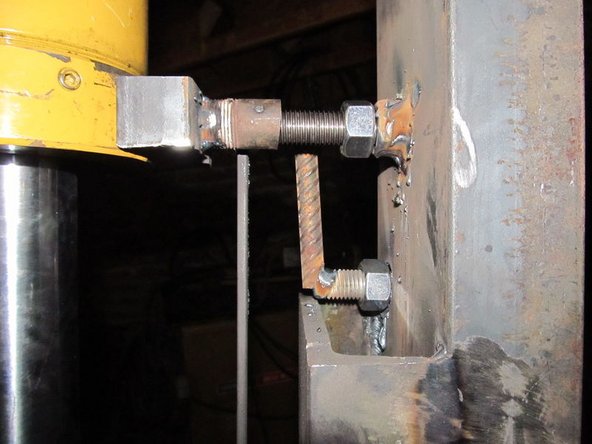

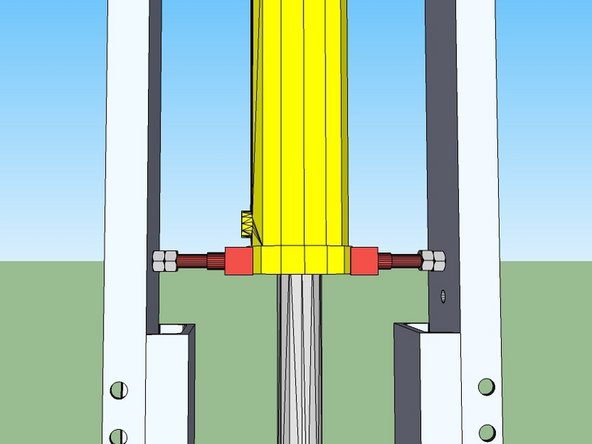

  1. Install the thin cylinder supports by screwing the bolt in with an extra nut on it as shown, and placing the u-channel against the cylinder. Get both of them snug so the cylinder is centered with pressure on each side.
    • Install the thin cylinder supports by screwing the bolt in with an extra nut on it as shown, and placing the u-channel against the cylinder.

    • Get both of them snug so the cylinder is centered with pressure on each side.

    • Tighten down the nut to lock it.

  2. Install the magnet holder onto the press foot.
    • Install the magnet holder onto the press foot.

    • The flatbar needs to be parallel with the verticals.

    • Lock it down with the nut.

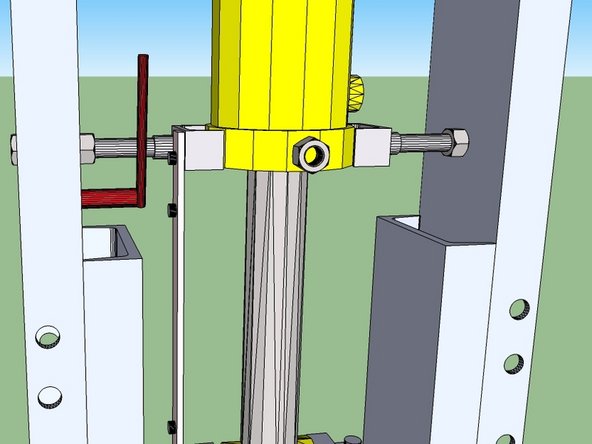

  3. Install the 6" sensor holder so the end of it  is overlapping the path of the magnet  holder as shown. The other sensor holder will be installed later.
    • Install the 6" sensor holder so the end of it is overlapping the path of the magnet holder as shown. The other sensor holder will be installed later.

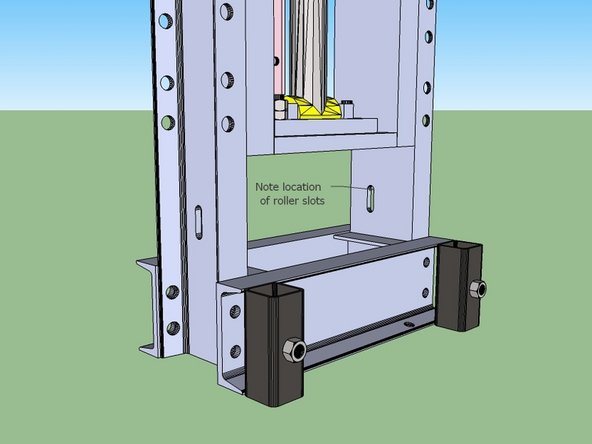

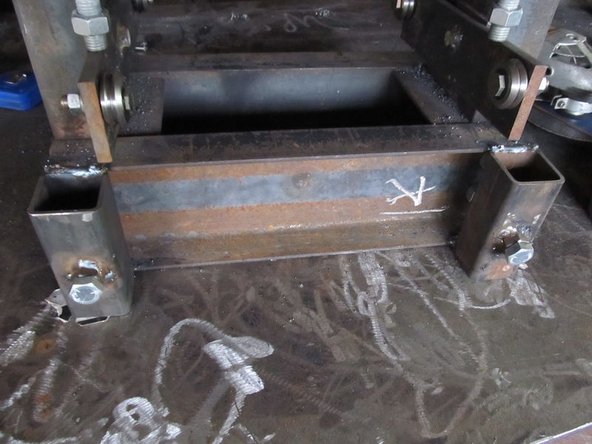

  4. Position them on the upper horizontal members as shown. Use the location of the roller guides to insure you attach them to the right side.
    • Position them on the upper horizontal members as shown.

    • Use the location of the roller guides to insure you attach them to the right side.

    • Insure they are square in all directions

    • Weld them to the horizontal members fully.
