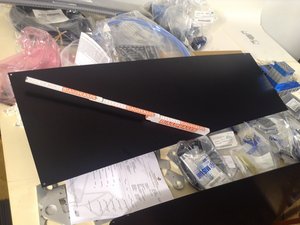

[1] powder-coated metal sheet 1166x356x0.8mm. Note that Misumi is sophisticated enough in its web interface that it gives you the hole pattern for the sheets included in the part number!
For CNC torch cutting in the future, use the FreeCAD model to generate full hole pattern to cut. The existing sheets, since they are a part order for replicability, do not include all the holes. 1.24
