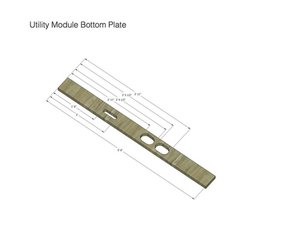

Use these dimensions to layout and make the bottom plate - it contains the openings for the pipes that come up and connect into the utility module.

The large slots are for 2" pipes, so it is best to make them 3" wide. The small slot is for a 1" pipe, so it is best to make it 2" wide.
