Editing Step 5 —

Step Type:

Drag to rearrange

Parts
2 2 hole x 4 hole plate
8 7" x 1" bolts
8 1" nuts

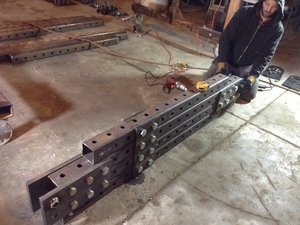

Put the bolts through one plate, through the second and third frame tubes (from the bottom), add the other plate to the other side and fasten the nuts.
Leave them a little loose.
