Editing Step 6 —

Step Type:

Drag to rearrange

Parts:
4 13" x 1" threaded rod (TODO link to guide on cutting threaded rod)
4 2 hole x 4 hole plates

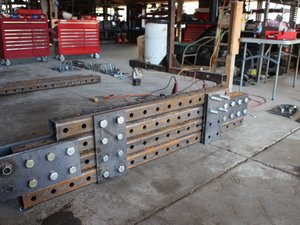

Put two plates on either sides of the frame tubes and slide the threaded rods through the top four holes so that the rods stick out evenly on each side.
