Editing Step 9 —

Step Type:

Drag to rearrange

Parts:
4 1" nuts
4 1" washers
4 2 hole long 1/4" tube

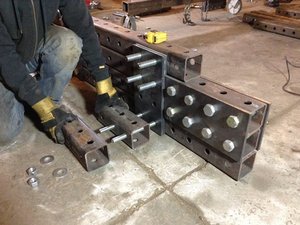

Put two tubes (feet) onto the threaded rods on each side of the frame.
Put a washer and nut loosely on each threaded rod.
The pictures show feet tubes with three holes, but a two hole long tube will do.
