Editing Step 23 —

Step Type:

Drag to rearrange

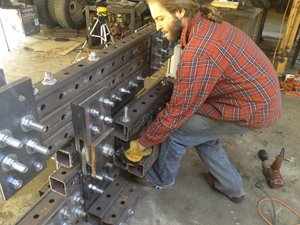

Put the table assembly threaded rods through the frame from the side with the lower blade. They should go through the holes on either side of the lower blade plate.
TODO from mon- reorg this to have threaded rods in this guide. 17" rods. 5 washers. clamp structure and work surface struture separately. clamp bolts 13"
TODO fix bot mid plate everywhere i took pics on mon
