Parts:

1 10" x 1" hardened bolt

3 1" washers

1 1" nut

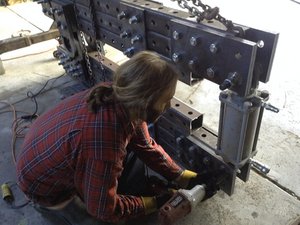

Put a bolt through a drilled out nut, the bottom hole of the plates on the frame, 2 washers, the base side of the cylinder, 1 more washer (on ours there was only room for 3 spacer washers), the other plates, and the last drilled out nut. Make sure the hose connectors on the hydraulic cylinder face away from the rest of the ironworker.

Put a nut on the bolt and tighten it and the top one.
