Editing Step 11 —

Step Type:

Drag to rearrange

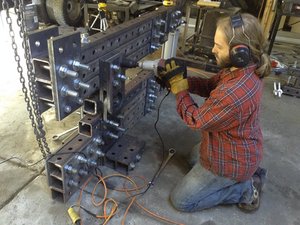

Tighten the 8 pivot plate bolts.

They should be tightened with about 150 ft-lbs of force since they're critical for keeping the blades perfectly aligned during cutting.
