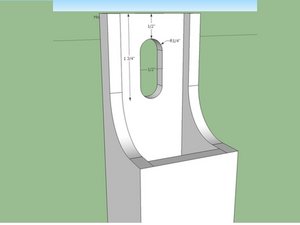

Torch away the necessary areas. See diagrams.
The holes for the hopper mounting need to be 28" away from the bottom side. Mark 28" on the opposite tubing walls and torch 1/2" holes. Insure a 1/2" bolt goes all the way thru.
Torch the cutaway at the top and the slot.
Grind away any slag.
