Interior sheathing for module 3a
1: 1/2"x4'x8' Plywood Sheet

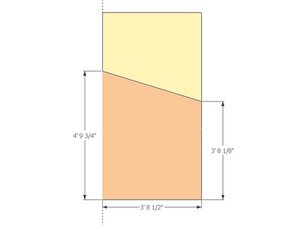

Cut the 17 degree angle on the piece by marking the two vertical distances and snapping a guide chalk line to connect the two. Use a 7-1/4"circular saw to make the cut.
Keep the excess plywood for [add plywood use here]
Place the plywood on edge along the bottom and left (taller vertical) edge to create a 3/4" gap on the right side for the previous module to attach to. The top overhang should be 1.5" to cover the top plate that will unify the modules during installation.
Fasten the 1/2" plywood to the framing using 1-5/8" coated deck screws around the perimeter and interior studs @ approximately 16" spacing.
