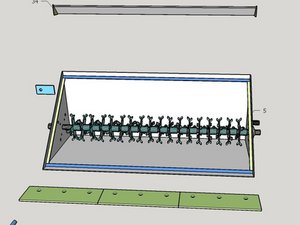

Pass the shaft P21 through one bearing, with the drilled bolt hole on the right end. Place the tine modules onto the shaft as it is being passed through.
The bolts on the tine modules can be tightened at the very end of the whole module fabrication. I suggest not doing it now as the shaft may need to be removed for some reason later.
