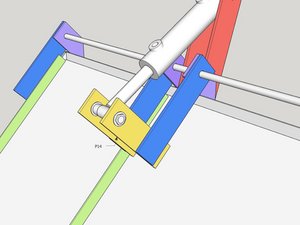

Ensuring the Hydraulic cylinder is about 1/4" back from full extension (to ensure the lid can fully close, but we don't want it to continue to extend much after full closure), bolt 2x P14 cylinder struts on to the cylinder, along with the spacers and washers. There are washers on both sides of P14 Parts.

Rotate the cylinder about the base etc to get the first P14 strut in position. it should be flat against the inside of P33. tack in place, ensure it is perpendicular to the lid with a set square and finish welding
