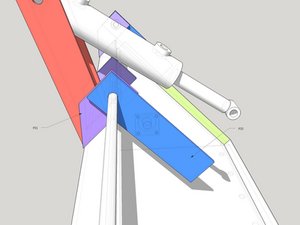

Lightly clamp P33 onto P31 maintaining the 90 degree angle in the joint as in the diagram. Since there is a washer in between on the shaft, 2 clamps may be required to keep everything flat.

Take one of the P33 parts and clamp to the middle p26 shaped piece. Place P26 Strut against the lid, ensure it is parallel with P33, and weld in place.
