ADD THE Z RIGHT MOTOR EXTENSION

Connect the Z motor extension to the right Z motor.

Route the extension through relief position #8.

Plug in as shown and put ground lug on post.

Zip tie at the 3 locations indicated while removing slack.

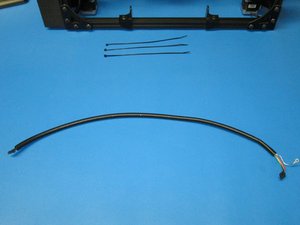

Photo 1 - Z motor right extension parts

Photo 2 - Plug extension into Motor
