ASSEMBLE BEARINGS ONTO X END IDLER

Install 2 608 Bearings with the M8 x 35 BHCS, M8 washers and M8 Nyloc nut.

Tighten Bolt all the way down.

Note, there is no washer under the head of the bolt.

Do the bearings spin freely?

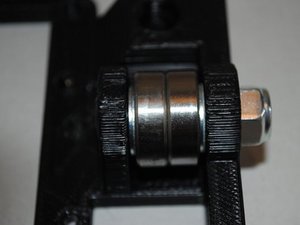

Photo 1 - M8 washers on both sides of bearings

Photo 2 - No washer under bolt head.

Photo 3 - M8 Washer under nut
