INSTALL X CARRIAGE GUIDE
Using 4x M3 x 12 SHCS and M3 Washers. Install the X carriage guide as shown.
Tighten bolts all the way down.
Verify Assembly is complete.

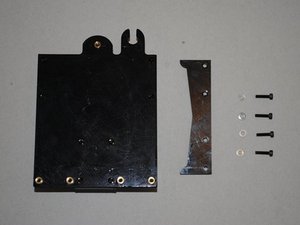

Photo 1 - X Carriage guide with parts
Photo 2 - X Carriage guide installed
