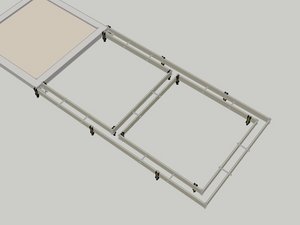

| + | [* black] The image shows the cut list for the foundation module. You can also link to it and print it out [https://docs.google.com/a/opensourceecology.org/spreadsheet/ccc?key=0ArNBTd6xfT7MdGhhRVdVeVR0UHp3c25pZThqOTVUcWc#gid=0|here] |
|---|---|
| + | [* black] Cut the 2x10 boards to the lengths shown in Image 1 or on the cut list in the link above. |

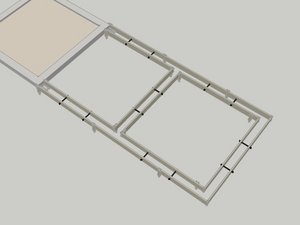

| + | [* black] Also cut 12 pieces of all-thread to 18" in length. These will be positioned through the forms as shown in Image 2. |
| + | [* black] Make 14 wooden stakes about 20" long - this is a great way to put your scrap end cuts from other projects to good use! You can also use metal stakes that are specifically made for retaining concrete forms. |
| + | [* black] ***NOTE! If your overlap of the outside form board on the foundation module you are connecting to is not exactly 3 1/2", then the 6' 5" board will not come out to the right length.*** |
