| + | [* black] We need to create a recess in the foundation where the door module will go. This allows the finish floor level to be slightly lower than the foundation, which keeps the CEBs elevated above the finish floor. This also will match the finish floor level of the MH 1 module. |
|---|---|
| + | [* black] Image 1 shows the recess made for the door in the MH 1 foundation module. |
| + | [* black] Image 2 shows the dimension from the exterior edge of the foundation and the dimension of the recess. |

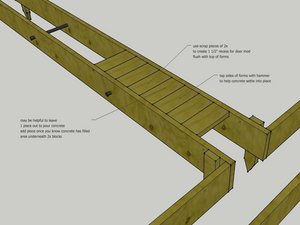

| + | [* black] Image 3 shows one way of making this recess - using scrap pieces of 2x. See notes in the image for helpful hints. |
Image 1
No previous image
Added
Image 2
No previous image
Added
Image 3
No previous image
Added
