Step Lines
| [* black] Parts: | |
| - | [* black] 4 2 hole x 4 hole |
| - | [* black] 6 |
| + | [* black] 4 2 hole x 4 hole plates |
| + | [* black] 6 8" x 1" bolts |
| [* black] 6 1" nuts | |
| - | [* black] Slide the bolts through two of the binding plates and the frame tubing. then slide the remaining plates over the bolts and fasten the nuts. |
| + | [* black] Slide the bolts through two of the plates, the frame tubing, the remaining plates, and fasten the nuts. |

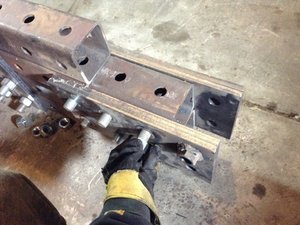

| + | [* black] Parts of the plates should stick out past the tubes as shown. |
| + | [* black] Leave them a little loose. |
| + | [* black] The pictures show a 7th nut welded on. You'll install that later so don't worry about it just yet. |
