[title] Couple the shaft
[* black] Cut the coupler down so it's 2" long. It doesn't matter from which side you cut it.
[* black] Get the shaker motor, the mount you made, the shaft/hammer, and the coupler.

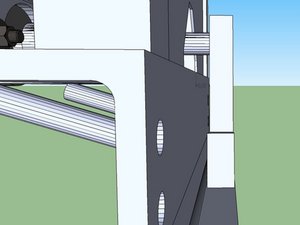

[* black] Put the shaker motor onto the mount and couple the shaft to it. Mark where the shaft enters the coupler.
[* black] Make sure the coupler won't be rubbing on the mount while it spins.
[* black] Make sure the hammer has about 5/8" clearance from the mount.
[* black] If not, you can pull it out of the coupler a little, but make sure the bolt won't be too close to the edge.
[* black] Otherwise, you can grind away the tacks on the hammer and tack it properly.
