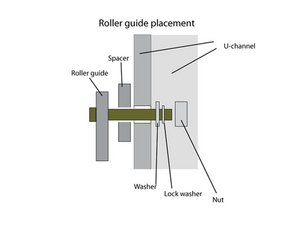

| + | [* black] Install the Roller guides as shown in the illustration. One side should have a 1/2" spacer, and the other should have a 3/8" spacer plate. |
|---|---|
| + | [* black] Tighten the bolts snug, but so that they can still move up and down. |

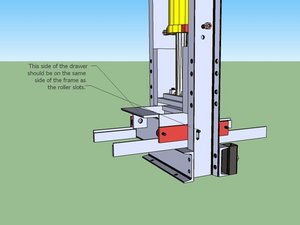

| + | [* black] Replace the drawer as if you're going to stretch the cylinder again. |
| + | [* black] The roller bearings should be on top of the rails on the drawer, and be putting no pressure on the drawer. |
