| + | [title] Stretch the frame |
|---|---|
| + | [* black] Attach the cylinder to a hydraulic pump or power cube and contract the cylinder at least 1". |
| + | [* black] Stand up the frame so the press feet are facing down. |

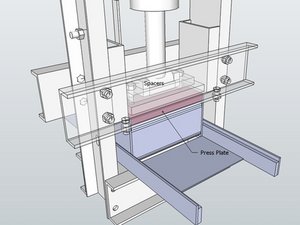

| + | [* black] Insert the Soil loading drawer on top of the horizontal members so that the press plate is facing the press feet. |
| + | [* black] If the drawer doesn't fit because of the spacers, you welded them too close. Grind off the tacks and tack them a little higher. |
| + | [* black] Position the drawer so that the press plate will be fully contacted by the press feet. |
| + | [* black] Bolt the drawer members on snugly. |
