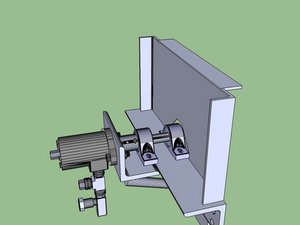

| + | [* black] Put the coupler onto the shaft. |
|---|---|

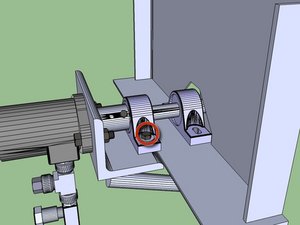

| + | [* black] Make sure you can see thru the holes (it could be off 180 degrees and a little crooked), then put on the bolt, lock washer, and lock nut. Tighten. |
| + | [* black] Couple it to the motor, tightening down the set screw. |
| + | [* black] Tighten the motor mount bolts. |
| + | [* black] Bolt the bearing closest to the motor to the mount with a washer, a lock washer, and a lock nut. Tighten these down. |
