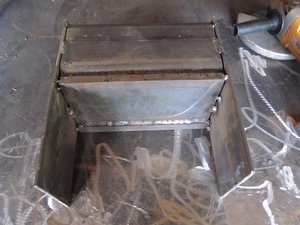

[title] Tack Sides
[* black] Lay the spacer/press plate assembly down so the press plate is touching the table.
[* black] Align side pieces with spacer and press plate assembly.
[* red] Insure the two are square vertically and horizontally with the spacer, that they are parallel, and that everything is touching the table.
[* green] It helps to use angle iron tacked to your table and the sides, so it insures they are vertically square. This also makes it a bit easier to align everything else. [http://www.youtube.com/watch?v=HnFXzrwzsjg&list=UUjvBN1r7UXXqmIbx_u7bIAw&index=339&feature=plpp_video|Video Help]
[* green] Also, it may help to use paper shims (see between the sides and the tube to properly space them. [http://www.youtube.com/watch?v=bahhYtxy4Zg&list=UUjvBN1r7UXXqmIbx_u7bIAw&index=203&feature=plpp_video|Video Help]
[* black] Tack the sides to the tube on all sides in multiple places except where it is touching the table. Add a few 1" seams to prohibit them from moving.
[* black] Do a few light tacks first, and double check it's still square. If not, grind off the tacks and start over.
