| + | [title] Prepare the hinge plates |
|---|---|
| + | [* black] Punch holes in 4 of the hinge plates as shown with a 7/8" or 1" punch. |

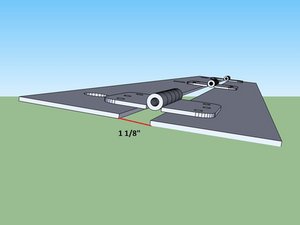

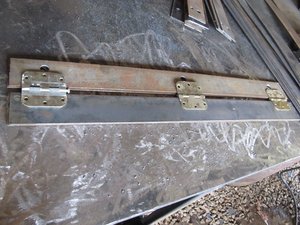

| + | [* black] Weld one plate with holes, one without holes, and 3 hinges together as shown, with the plates 1 1/8" apart and the hinge centered. |
| + | [* black] Make sure the side of the hinge that sticks out most is on the top; this way it won't interfere with the hopper metal below when installing the hopper. |
| + | [* black] Make 3 more of these. |
