+[title] Make the Grate Supports.
+[* black] Punch the hole on the bottom of the supports for each.
+[* black] Torch away a 4" section on the top of each grate to make it like the model shown.
+ [* black] Remember that the two are mirrored.
+ [* black] Cut away the corner so the hopper wont hit it, about a 1" 45 degree triangle.

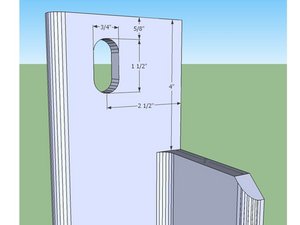

+ [* black] Torch a slot for a 3/4" bolt at the top of the mount, as shown.
+[* black] Grind away all the slag.
