| + | [* black] ***Interior sheathing for module 8a*** |
|---|---|

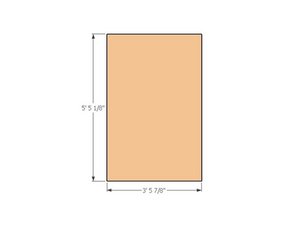

| + | [* black] Measure and mark 5'5-1/8" up one side of the plywood and over 3'5-7/8". Cut the module's interior sheathing using a 7-1/4" circular saw. |

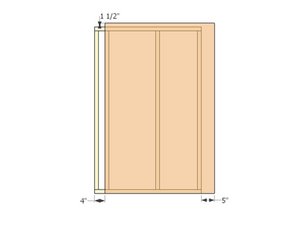

| + | [* black] Place the frame/osb/insulation assembly osb-side down. Align the plywood sheathing with a 5" overhang on the right (edge furthest from narrow stud-gap) and flush with the bottom plate. The offset should line the left edge to sit flush with the 2nd stud from left-most. The top overhang should be 1.5". |
| + | [* black] Fasten the 1/2" plywood to the framing using 1-5/8" coated deck screws around the perimeter and interior studs @ approximately 16" spacing. |
