| + | [* black] ***Exterior Sheathing for Module 8a*** |
|---|---|

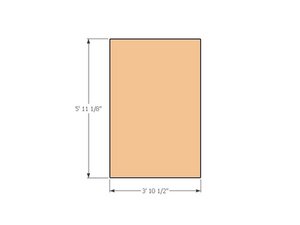

| + | [* black] Measure and mark 5'11-1/8" up one side of the OSB and over 3'10-1/2". Cut the module's exterior sheathing using a 7-1/4" circular saw. |

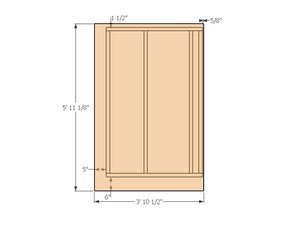

| + | [* black] Place the frame on the ground or on a table with the narrow gap between studs on the right. Place the OSB sheathing onto the frame so that it overhangs 6" along the bottom and 5" along the left side. This should result in a 1.5" overhang at the top and a 5/8" overhang on the right side. |
| + | [* black] Fasten the 3/4" OSB to the framing using 1-5/8" coated deck screws around the perimeter and interior studs @ approximately 16" spacing. |
