| + | [* black] ***Interior sheathing for module 7a*** |
|---|---|

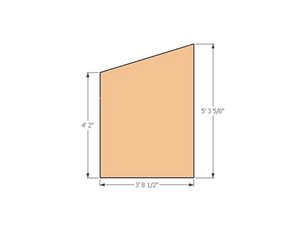

| + | [* black] Cut the 17 degree angle on the piece of plywood by marking the two vertical distances and snapping a guide chalk line to connect the two. Use a 7-1/4"circular saw to make the cut. |

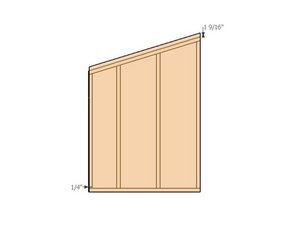

| + | [* black] Align the sheathing flush with the bottom plate and flush with the taller vertical edge (right side in image). The offset will create 1/4" gap on the left (shorter) side for the previous module to attach to. The top overhang should be 1.5" to cover the top plate that will unify the modules during installation. |
| + | [* black] Fasten the 1/2" plywood to the framing using 1-5/8" coated deck screws around the perimeter and interior studs @ approximately 16" spacing. |
