| + | [* black] ***Interior sheathing for module 6a.*** |
|---|---|

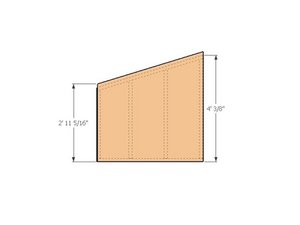

| + | [* black] Cut the 17 degree angle on the piece by marking the two vertical distances and snapping a guide chalk line to connect the two. Use a 7-1/4"circular saw to make the cut. |

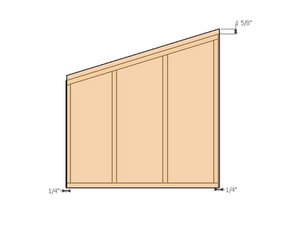

| + | [* black] Align the sheathing with a 1/4" overhang on the left flush with the bottom plate. The offset will create 1/4" gap on the right side for the previous module to attach to. The top overhang should be 1.5" to cover the top plate that will unify the modules during installation. |
| + | [* black] Fasten the 1/2" plywood to the framing using 1-5/8" coated deck screws around the perimeter and interior studs @ approximately 16" spacing. |
