Changes to Step #2
Edit by Andrew Graham —
Edit approved by Andrew Graham
- Before
- After
- Unchanged
Step Lines

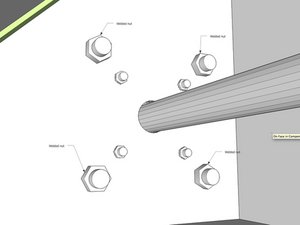

| [* black] Pass the 12" long, 1" threaded rods through p24 then through the tubes (not shown), through p23 and thread them through the nuts welded to the far side of P4. | |

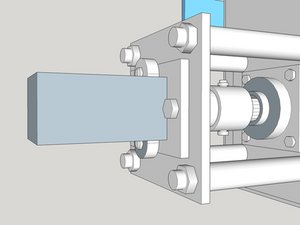

| [* black] Attach the 4 further nuts to clamp the motor to the tubes, and the tubes against p23, in a sandwich | |
| - | [* black] Tighten the 2 screws |
| + | [* black] Tighten the 2 screws in the collars of both bearings to the shaft (should be separated by 120 degrees). |
Image 1
No previous image
Added
Image 2
No previous image
Added
Image 3
No previous image
Added
