| - | [* black] Check for fit by passing the hinge rod through the holes in the pieces. |
|---|---|

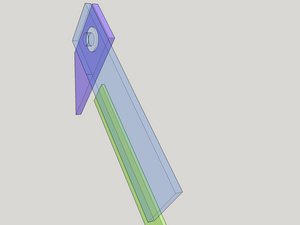

| + | [* black] Tack 2x P31 hinge pieces in position - Ensure after placing a washer on the outside face of the hinges that it is flush with lid struts (P26) on the ends. |
| + | [* black] Check for fit by passing the hinge rod through the holes in the P31 pieces. |
| [* black] Finish the welds. |
