Step Lines

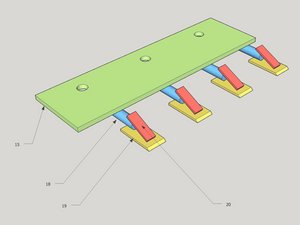

| + | [* black] Weld 4 teeth at the proper spacing (4" on center ? and 2" on center from edge ? ) to part 15 (tooth bar bolt bar), with X inches overlap between 18 and 15 |
|---|---|

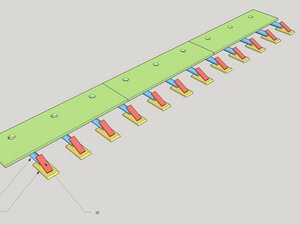

| + | [* black] Repeat for the 2 other parts 15 |
