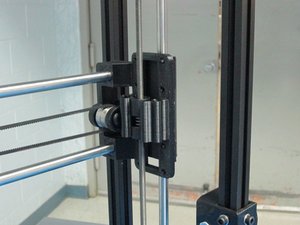

| [* black] INSTALL RIGHT DRIVE ROD | |
| [* black] Push the end of the coupler tube down onto the Motor shaft. | |
| [* black] Adjust the height of the Z nut holder by spinning it to get it close in height to the X end idler. | |
| [* black] Using 4x M3 x 12 SHCS and M3 Washers, attach the Z nut holder to the X end idler. | |
| [* black] Install large zip ties on the end of the drive rod and on the motor shaft as shown. | |
| [* black] The zip must be tight enough that you can't pull the drive rod off vertically. | |
| + | [* black] Did you pull up on the drive rod to check the zip ties? |
