| + | [* black] INSTALL X CARRIAGE AND GUIDING RODS |
|---|---|

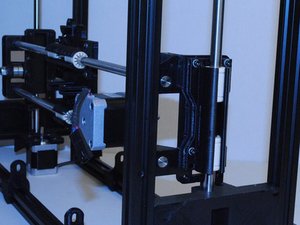

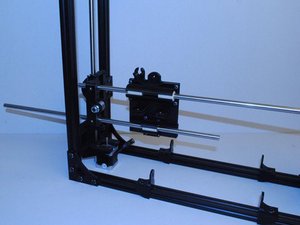

| + | [* black] Slide a 10mm rod through one of the two holes in the X end idler. |
| + | [* black] Once its through far enough, put the X carriage on the rod. |
| + | [* black] Finish sliding the 10mm rod through until it's also inserted into the X end motor. |
| + | [* black] The rod will be flush with the outside of the X end motor. |
| + | [* black] Repeat with the second 10mm rod in the second set of holes. |
