Step Lines
| + | [* black] INSTALL SMOOTH ROD AND X END IDLER |
|---|---|
| + | [* black] Slide a 10mm smooth rod up through the bottom of the right Z motor mount. |

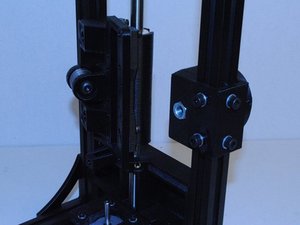

| + | [* black] Once you get it started, put the X end idler onto the 10mm rod. |

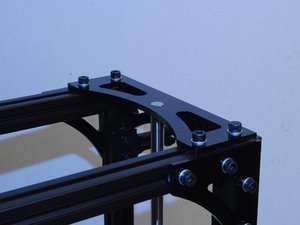

| + | [* black] Slide the rod in until the end is flush with the top of the Z top flat plate. |
| + | [* black] Use a M3 x 6 set screw to secure the rod in place. |
