| + | [* black] SQUARE FRAME, SET SPACING AND TORQUE BOLTS (continued) |
|---|---|
| + | [* black] Using fixtures, set the location of the Name plate, Z motor mounts and Feed tube holder. |
| + | [* black] Tighten all the bolts at this point. |
| + | [* black] Is the frame square? |
| + | [* black] Are all the gaps at the ends of the extrusion closed? |
| + | [* black] Are the edges of the parts flush with the extrusion? |
| + | [* black] Are all the bolts tight? Are there 2x M5 T-nuts in the top front extrusion and 2x M5 T-nuts in the left front extrusion? |

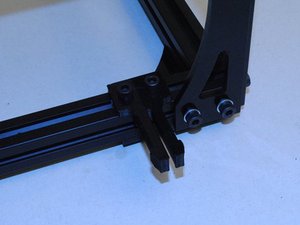

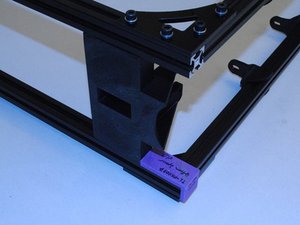

| + | [* black] Photo 1 - Set Name plate spacing and tighten bolts -- Photo 2 - Z Motor Mount height -- Photo 3 Location of Feed tube holder |
