| [* black] INSTALL Z MOTOR MOUNT RIGHT | |
| [* black] Install 4x M5 x 10 SHCS, M5 Washers and M5 T-nuts into the Z motor mount right as shown. | |
| [* black] Slide the motor mount into the bottom of the frame and set it's height with the 48mm fixture. | |
| + | [* black] Photo 1 - Parts required to install the Z motor mount right |

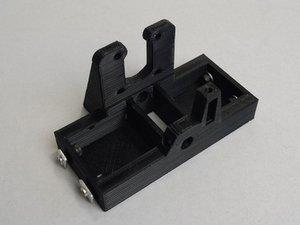

| + | [* black] Photo 2 - Hardware installed for insertion |

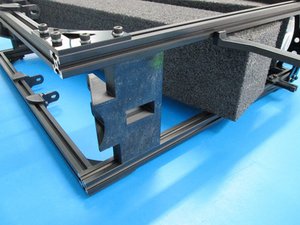

| + | [* black] Photo 3 - Z motor mount right installed |
