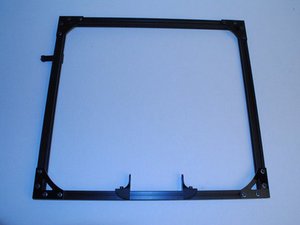

| + | [* black] ASSEMBLE THE BACK FRAME SQUARE |
|---|---|
| + | [* black] There is a tapped extension at the top of both the right and left extrusions. |
| + | [* black] Install 2x M5 t-nuts into the top of the upper extrusion. |
| + | [* black] Assemble using M5 x 10 SHCS, M5 Washers and M5 T-nuts. |
