Changes to Step #7
Edit by Robert Kirk —
Edit approved by Robert Kirk
- Before
- After
- Unchanged
Step Lines

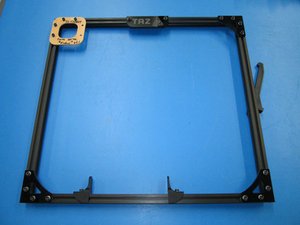

| + | [* black] ASSEMBLE THE FRONT FAME SQUARE |
|---|---|
| + | [* black] There is a tapped extension at the top of both the right and left extrusions. |

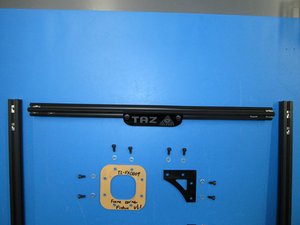

| + | [* black] Install 2 M5 t-nuts into the top of the name plate extrusion. |
| + | [* black] Use Fixture TL-FX0009 in the upper left corner. |
| + | [* black] Assemble using M5 x 10 SHCS, M5 Washers and M5 T-nuts. |
Image 1
No previous image
Added
Image 2
No previous image
Added
Image 3
No previous image
Added
