Step Lines
| + | [* black] INSTALL THE SPOOL ARM |
|---|---|
| + | [* black] New line.Install 1x M8 nut into the Inner spool mount. |

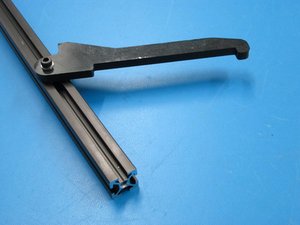

| + | [* black] Use 1x M5 x 14 SHCS and M5 Washer to bolt on the Spool Arm. |
| + | [* black] Take note of the tapped end of the extrusion. |

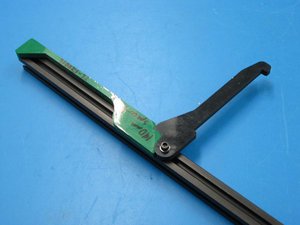

| + | [* black] Set the location of the arm using the TL-FX0011 fixture. |
