| + | [* black] INSTALL Y MOUNT CHASSIS ONTO EXTRUSIONS - Build 2 of these assemblies. |
|---|---|

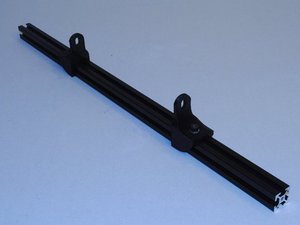

| + | [* black] Install two Y mount chassis onto Extrusion with no taps using M5 x 10 SHCS, M5 Washers and M5 T-nuts. |
| + | [* black] Take note of the direction of the Y mounts, the tall flat sides must face each other. |
| + | [* black] The location is not important at this point. Snug them down just enough to not slide around during the rest of the assembly. |
| + | [* black] Have you assembled 2 of these? |
