| + | [* black] GATHER PARTS AND TOOLS FOR FRAME ASSEMBLY |
|---|---|
| + | [* black] Components: Z top flat Z top flat side Frame connector Name Plate Y mount chassis Z motor mounts, Left and Right Spool Arm |
| + | [* black] Feed tube holder Extrusion, 500mm Black, not tapped Extrusion, 500mm Black, tapped on one end M5 x 10 SHCS M5 x 14 SHCS M5 Washer M5 T-nuts |
| + | [* black] Tools:TL-FX0001, 140mm Spacer TL-FX0009, TL-FX0021, 48mm Spacer TL-FX0016 4mm Allen Driver |

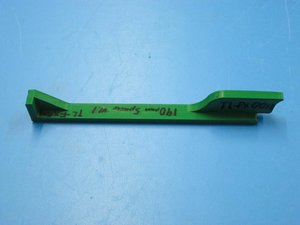

| + | [* black] Photo 1: TL-FX0001, 140mm Spacer |
