| + | [* black] INSTALL BEARING HOLDERS |
|---|---|
| + | [* black] Install the double bearing holder and single bearing holder using M3 x 12 SHCS and M3 Washers. |
| + | [* black] Take note of the double bearing holder orientation. |
| + | [* black] The end with the step must be in the correct location. |
| + | [* black] Do not tighten the screws all the way down. The bearings will be adjusted later and must wiggle at this step. |
| + | [* black] Photo 1 - Bearing holders and parts |

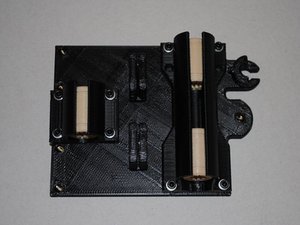

| + | [* black] Photo 2 - Bearing holders assembled |
