| + | [* black] INSTALL IDLER TENSIONER |
|---|---|
| + | [* black] Install M4 x 55 with thumb knob, M4 washer, extruder spring, M4 washer and Extruder latch into M4 nut installed in body. |
| + | [* black] Then put another M4 x 55 with thumb knob, M4 washer, extruder spring, M4 washer through the Extruder latch and into the body. |

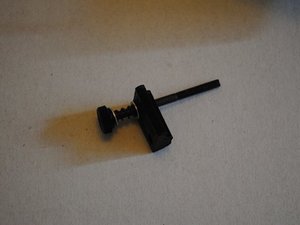

| + | [* black] Photo 1 - Prep parts for assemby |

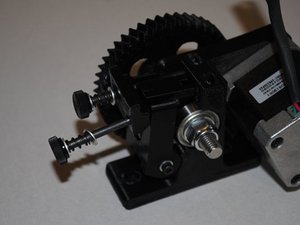

| + | [* black] Photo 2 - Idler tensioner assembly |
| + | [* black] Can you adjust both bolts in and out by hand? |
| + | [* black] Can you swing the tensioner up and down? |
