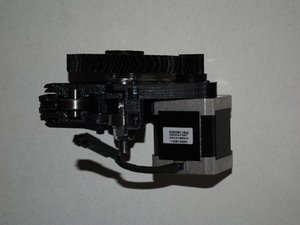

| + | [* black] INSTALL MOTOR |
|---|---|
| + | [* black] Holding the motor in the location where it will be mounted, align the herringbone gears by sliding the small gear in or out on the motor shaft so the V-grooves are centered on each other. |
| + | [* black] Install motor using 3x M3 x 12mm SHCS and 3x M3 washers, taking note of the orientation of the motor wires. |
| + | [* black] Push the gears together while you tighten the bolts to make sure the contact is tight. |
| + | [* black] Tighten the set screw on the small herring bone gear. |
| + | [* black] Are the motor wires oriented correctly? |
| + | [* black] Are the V-grooves of the gears aligned? |
| + | [* black] Is there any back-lash in the gears? Can you spin the large gear for several rotations? |
